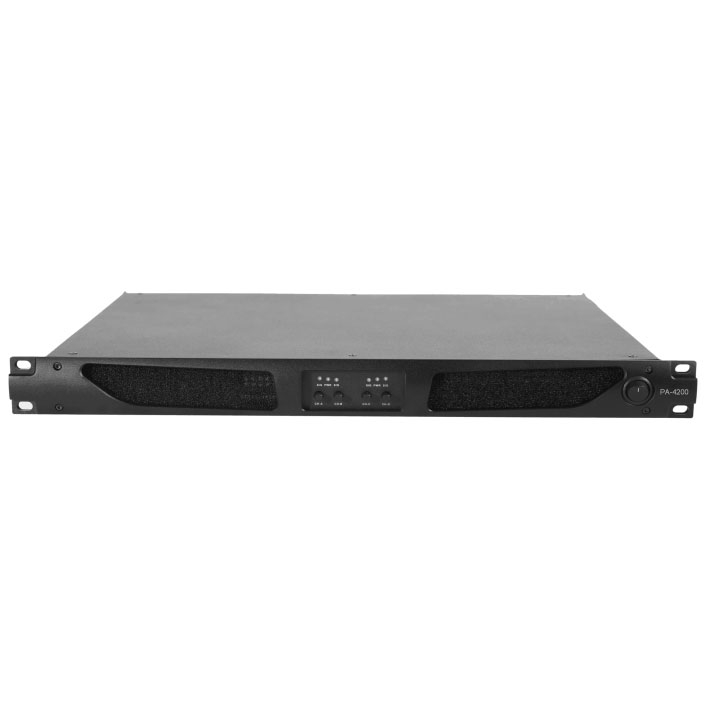

| Model: |
PA-4200 |
| 8 ohm / stereo |
4×2000W |
| 4 ohm / stereo |
4×3400W |
| 2 ohm / stereo |
4×4760W |
| 16 Omega / Bridging power |
2×4000W |
| 8 Omega / Bridging power |
2×6800W |
| 4 Omega / Bridging power |
2×11560W |
| The power is 20ms pulse. |
The 1kKz sine wave is measured under 1% total harmonic distortion. |
| RMS output voltage |
(STARD=1%,1kHz):89.4V) |
| Rise slope |
(50V/us (1kHz, bypass low pass filter) |
| Input sensitivity |
(rated output power, 1kHz) optional: 38dB, 35dB, 32dB, 29dB) |
| STARD+N |
0.01% (10% rated output power, typical value) |
| IMD-SMPTE |
0.01% (10% rated output power, typical value) |
| DIM30 |
0.01% (10% rated output power, typical value) |
| Crosstalk suppression |
Greater than 90dB (lower than rated power, 20Hz~1kHz) |
| frequency response |
+ 0.2dB (10% rated output power, 8 ohm, 20Hz~20kHz) |
| Input impedance |
20kΩ(balance)，10kΩ(non-equilibrium) |
| Damping coefficient |
≥5000(8Ω,20Hz~200kHz) |
| Signal to noise ratio (A weight, 20Hz-20kHz) |
≥109dB |
| Power requirements |
90~260VAC,50~60Hz |
| Protection function |
Power supply under-voltage protection, power amplifier output DC protection, overheating protection, temperature power control, overload power control |
| Dimensions (W × H × D) |
483×44×465 |
| Net weight |
16Kg |
