Egle PA-3000W

Thương hiệu: Egle |

Đánh giá

Giá

55.500.000₫

Mô tả :

Đang cập nhật ...

Miến phí lắp đặt nội thành Hà Nội

Đang cập nhật

Đổi mới trong vòng 1 tuần nếu phát hiện lỗi từ nhà sản xuất

Nhà cung cấp xuất hóa đơn cho sản phẩm này

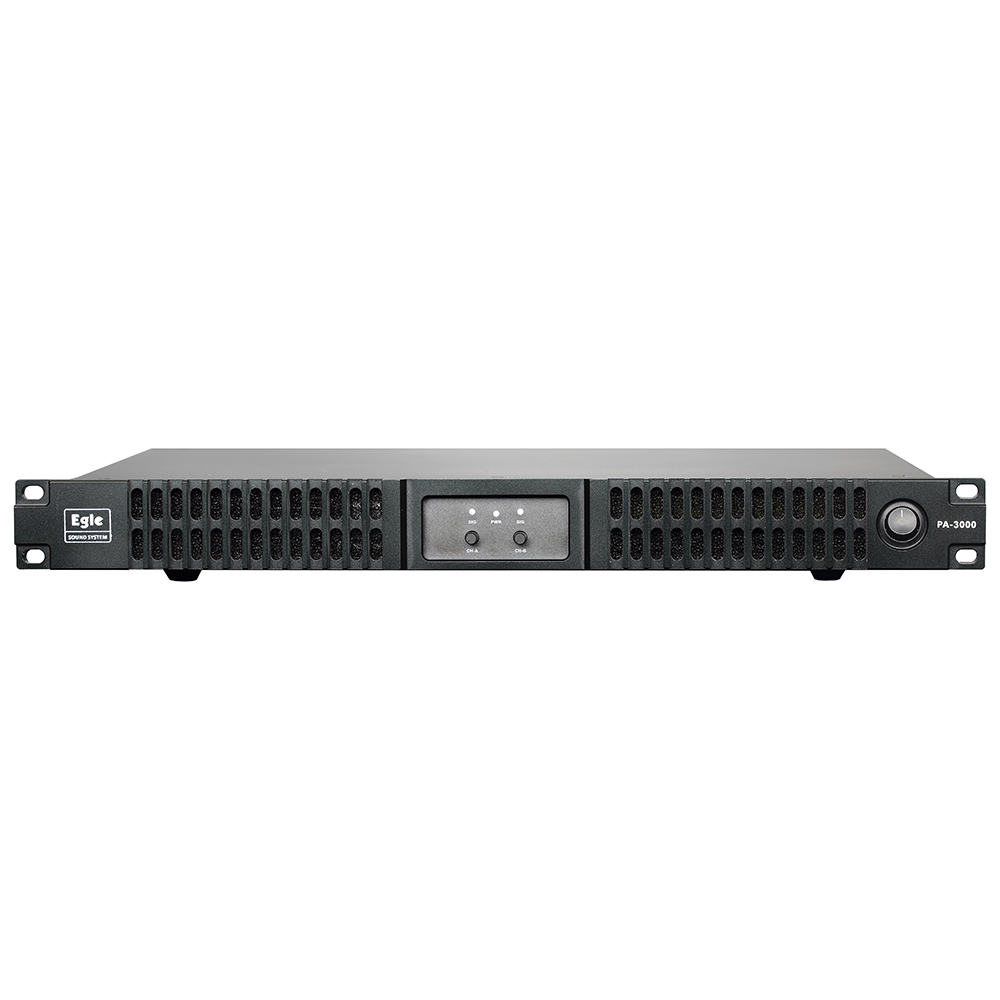

2-channel digital power amplifier

PA-3000W

PA series refers to digital power amplifier. Having developed for over 10 years, our R & D department ouquire the cutting-edge technology in speaker power amplifier, so that PA series amplifier can transfer huge power density and present brilliant timbre. PA series product must be the first choice for power performance and bars owing to its impressive expressive power and extreme efficiency.

Model:	PA-3000
8 ohm / stereo	2×3000W
4 ohm / stereo	2×5100W
2 ohm / stereo	2×7140W
16 Omega / Bridging	1×6000W
8 Omega / Bridging	1×10200W
4 Omega / Bridging	1×14280W
The power is 20ms pulse.	The 1kKz sine wave is measured under 1% total harmonic distortion.
RMS output voltage	(STARD=1%,1kHz):89.4V)
Rise slope	(50V/us (1kHz, bypass low pass filter)
Input sensitivity	(rated output power, 1kHz) optional: 38dB, 35dB, 32dB, 29dB)
STARD+N	0.01% (10% rated output power, typical value)
IMD-SMPTE	0.01% (10% rated output power, typical value)
DIM30	0.01% (10% rated output power, typical value)
Crosstalk suppression	Greater than 90dB (lower than rated power, 20Hz~1kHz)
frequency response	+ 0.2dB (10% rated output power, 8 ohm, 20Hz~20kHz)
Input impedance	20kΩ(balance)，10kΩ(non-equilibrium)
Damping coefficient	≥5000(8Ω,20Hz~200kHz)
Signal to noise ratio (A weight, 20Hz-20kHz)	≥109dB
Power requirements	90~260VAC,50~60Hz
Protection function	Power supply under-voltage protection, power amplifier output DC protection, overheating protection, temperature power control, overload power control
Dimensions (W × H × D)	483×44×370
Net weight	9kg
